BUTT WELD FITTINGS (BWF)
Stainless steel butt weld fittings from OSTP are coordinated with our process pipe offering. Delivered in grades to meet your application demands, they provide the ideal match for our high-quality stainless steel pipes and tubes.
unique knowledge and experience

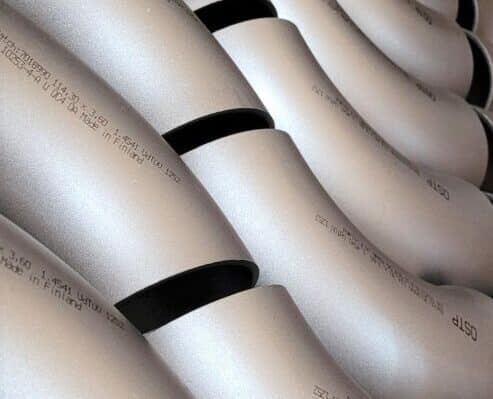

Elbows, tees, reducers, collars and end caps are readily available from stock, along with flange joints for various applications.
With our knowledge and experience in fitting development and manufacture, we can also specially produce butt weld fittings to meet your unique requirements.
Materials and welding
OSTP butt weld fittings are created from tubes, sheet or strip, depending on the fitting design and dimensions.
Our standard stock is mainly based on EN 1.4307, 1.4541, 1.4571, 1.4404 , 1.4432, 1.4462, 1.4547 and 1.4410, but fittings in other grades can be manufactured on request.
For general use, our fittings are delivered with welding factor z = 0.7 and without special inspection. For fittings used in pressure equipment that require welding factor z = 1.0, we perform special inspection according to EN 10253-4.
PCM Technology completes our range of products when it comes to welded collars and reducers.
The products with dimensions from DN10 to DN600 and material thicknesses 2,0 mm, 3,0 mm and 4,0 mm are made based on de facto industry standards. These products are non-pressure-rated.
Our reducers are straight reducers (L=3x(D-d)) and comply with the standards EN 10253-3 or EN 10253-4. Based on customer orders, we also make reducers with special dimensions from the size DN200 up.
